Brisa

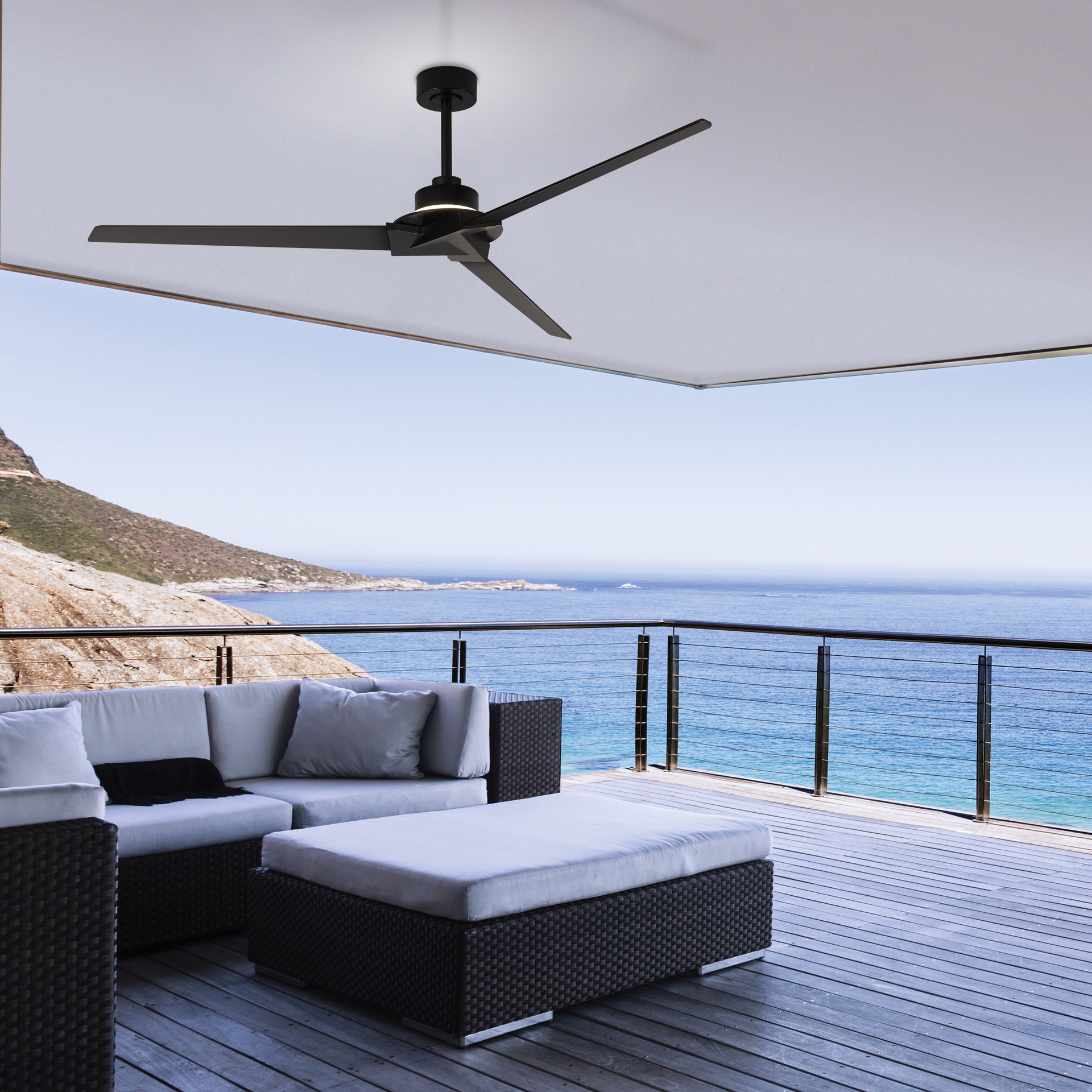

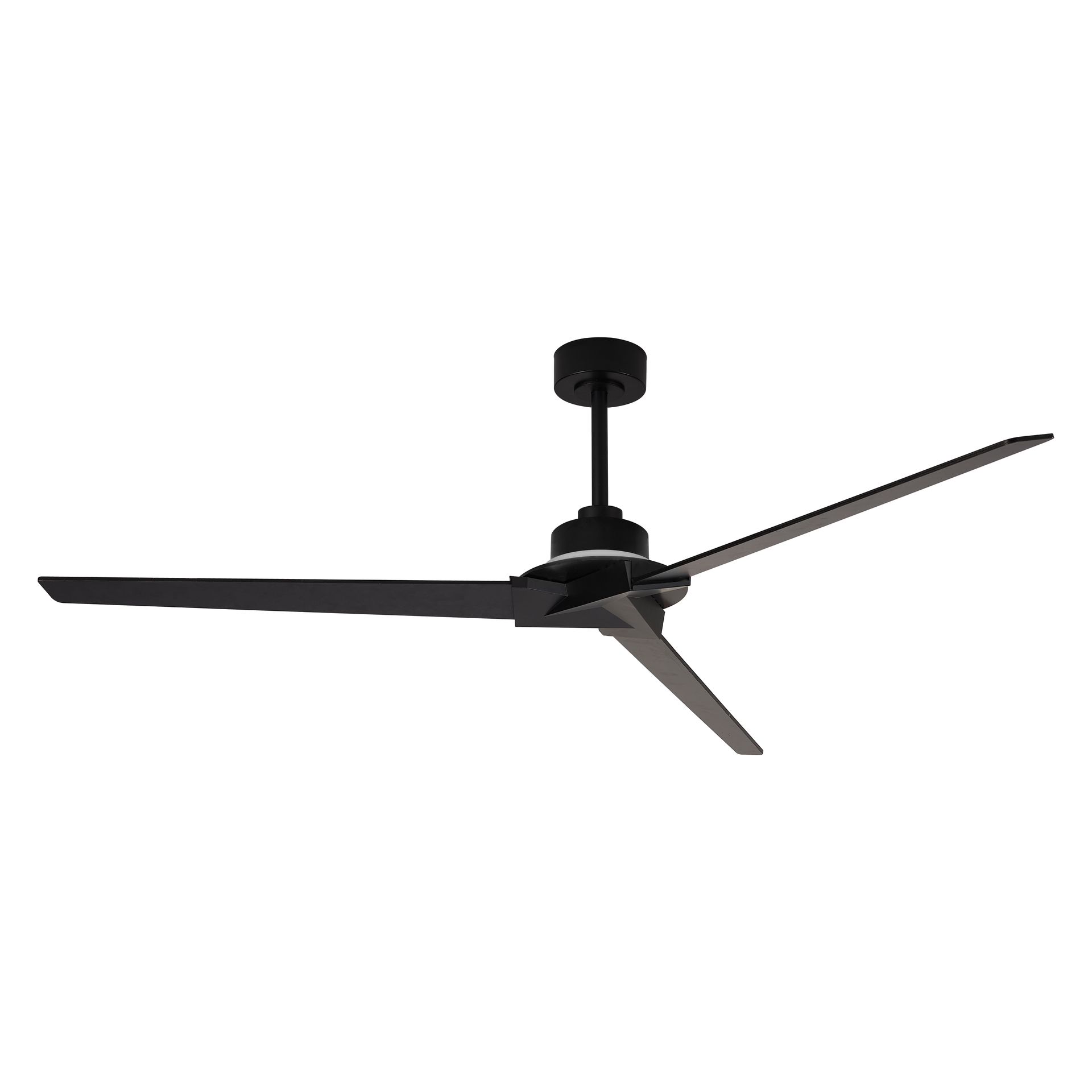

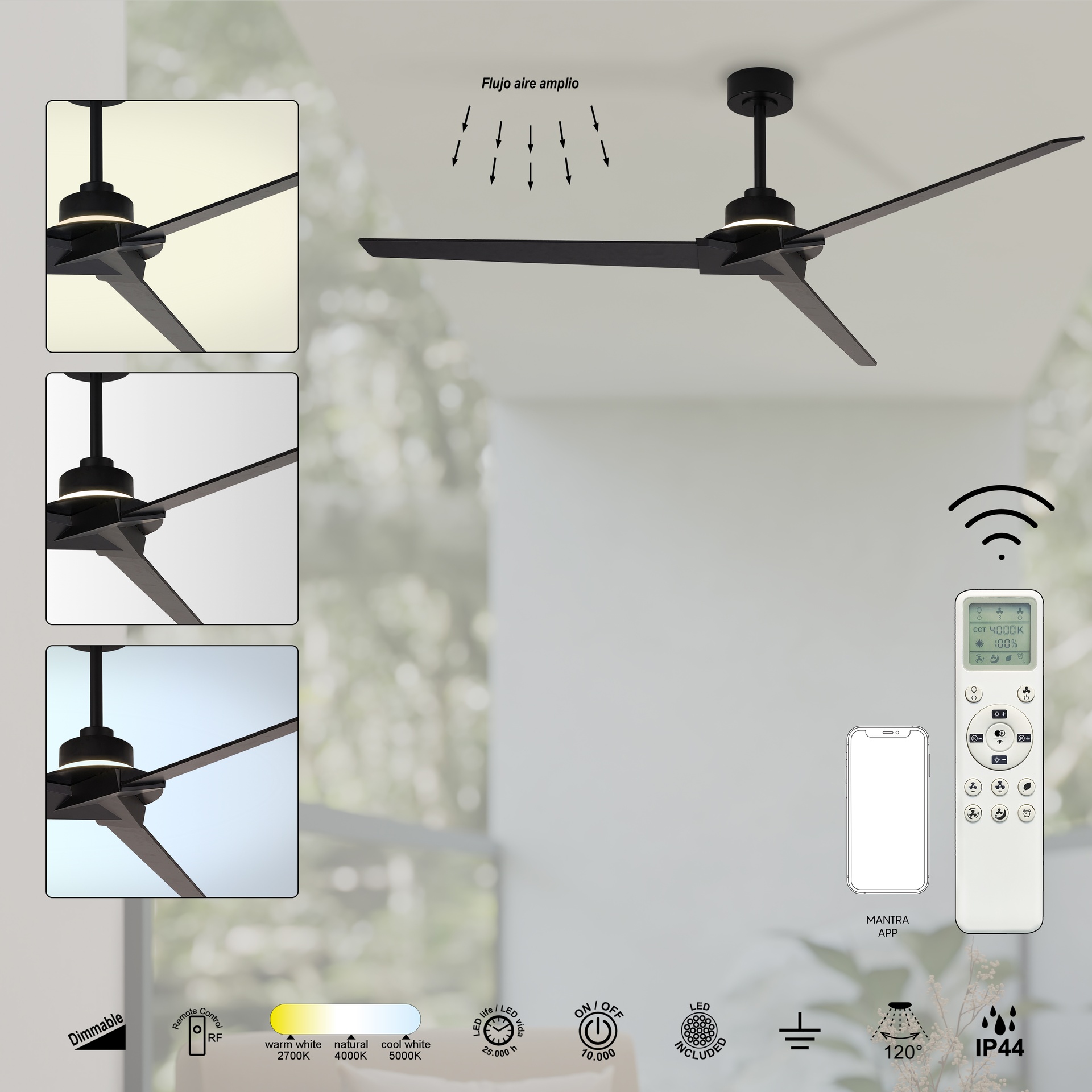

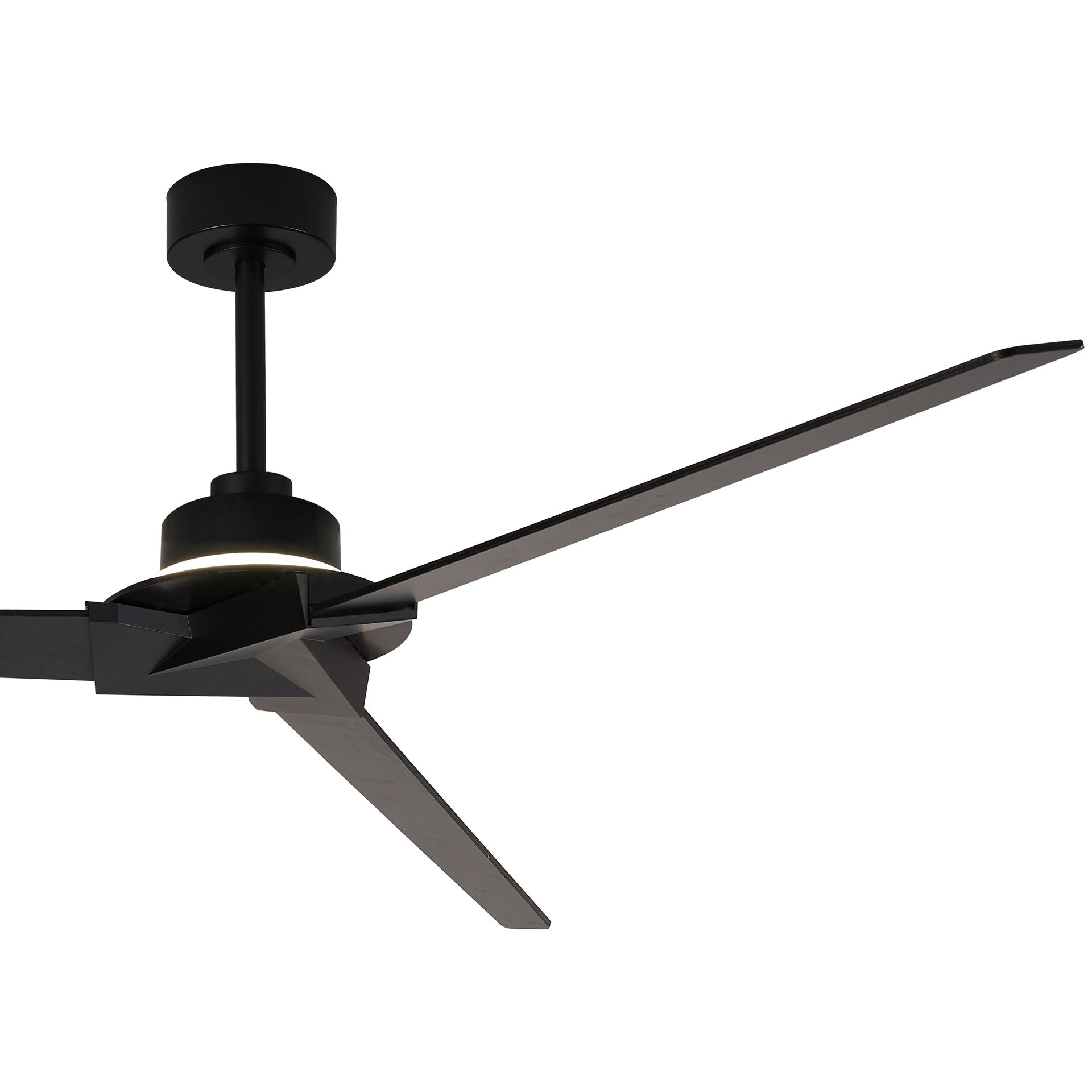

BRISA * IP44 BLACK FAN/WOOD LED 20W-2700K-5000K
Reference 8723
BRISA, designed by José Ignacio Ballester, combines creativity and precision in ventilation. It consists of a ceiling fan, offering adaptable solutions for different spaces. The luminaires are made of acrylic/wood and available in white, black/wood finishes, providing strength and style in every application. They incorporate LED technology with color temperatures of 2700K-5000K, ensuring comfort and energy efficiency. BRISA is designed for those seeking aesthetic solutions without sacrificing professional performance.
Finish: Black / Wood
Features
General
- Finish
- Black / Wood
- Material
- Steel / ABS

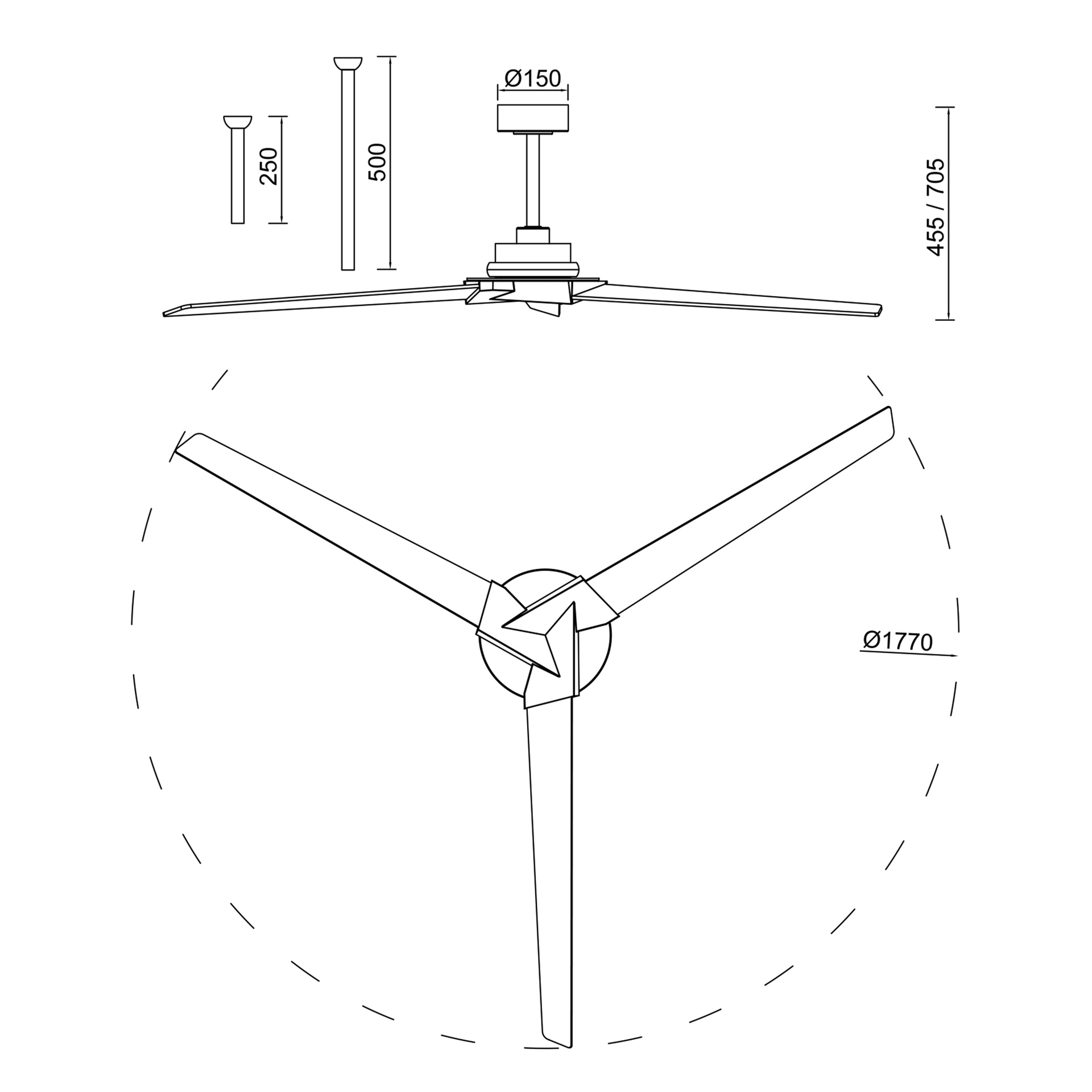

Dimensions
- Min.–max. height (H)
- 45,5/70,5 cm
- Diameter
- 177 cm
- Net weight
- 6,6 kg
Features
- Dimmable
- Yes
- Height adjustable
- No
- Protection class
- I
- Electrical input
- 220-240V~50/60Hz
- Warranty
- 5 years
- Ingress protection rating
- IP44
- Bluetooth
- Yes
- App
- Yes
- Remote control code
- R00142(2.4GHz)
- Remote control frequency
- 2.4GHz
- Dimmer
- Radio-frequency remote control
LED
- Luminous flux (lm)
- 1400 lm
- Luminous flux 360
- 2200 lm
- CCT (colour temperature)
- 2700K-5000K
- Power (W)
- 20W
- LED lifetime (hours)
- 25000 hours
- Replaceable
- Yes
- ON/OFF cycles
- 10000
- CRI
- 80
- Beam angle
- 120
Ventilation
- Motor
- 40W
- Noise level min./max. (dB)
- 33/45dB
- Light power (fan)
- 20W
- Speeds
- 8
- Recommended room size
- >20m²
- Maximum RPM
- 152
- Airflow
- 200m³/min
- Light included?
- Yes
- Blade material
- Medium-density fibreboard
- Blade colour
- Wood / Black
- Number of blades
- 3
- Reversible blades
- Yes
- Sloped ceiling
- No
- Maximum ceiling slope
- 0°
- Downrod length
- 25/50
- Additional downrod?
- Yes
- Summer / winter mode
- Yes
- Motor type
- DC
Other information
- Designer
- José Ignacio Ballester
