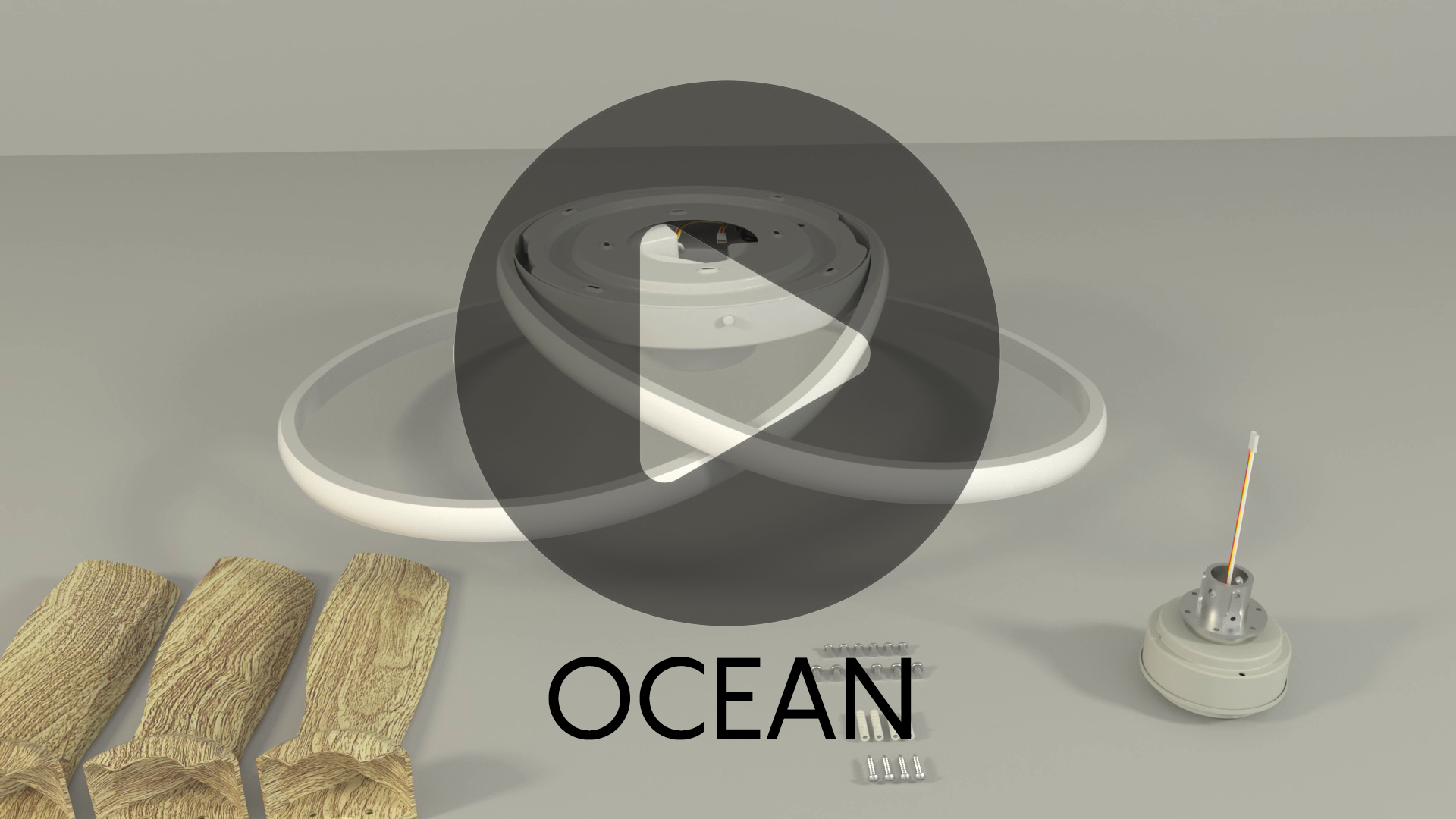

Videos
3D View
Ocean

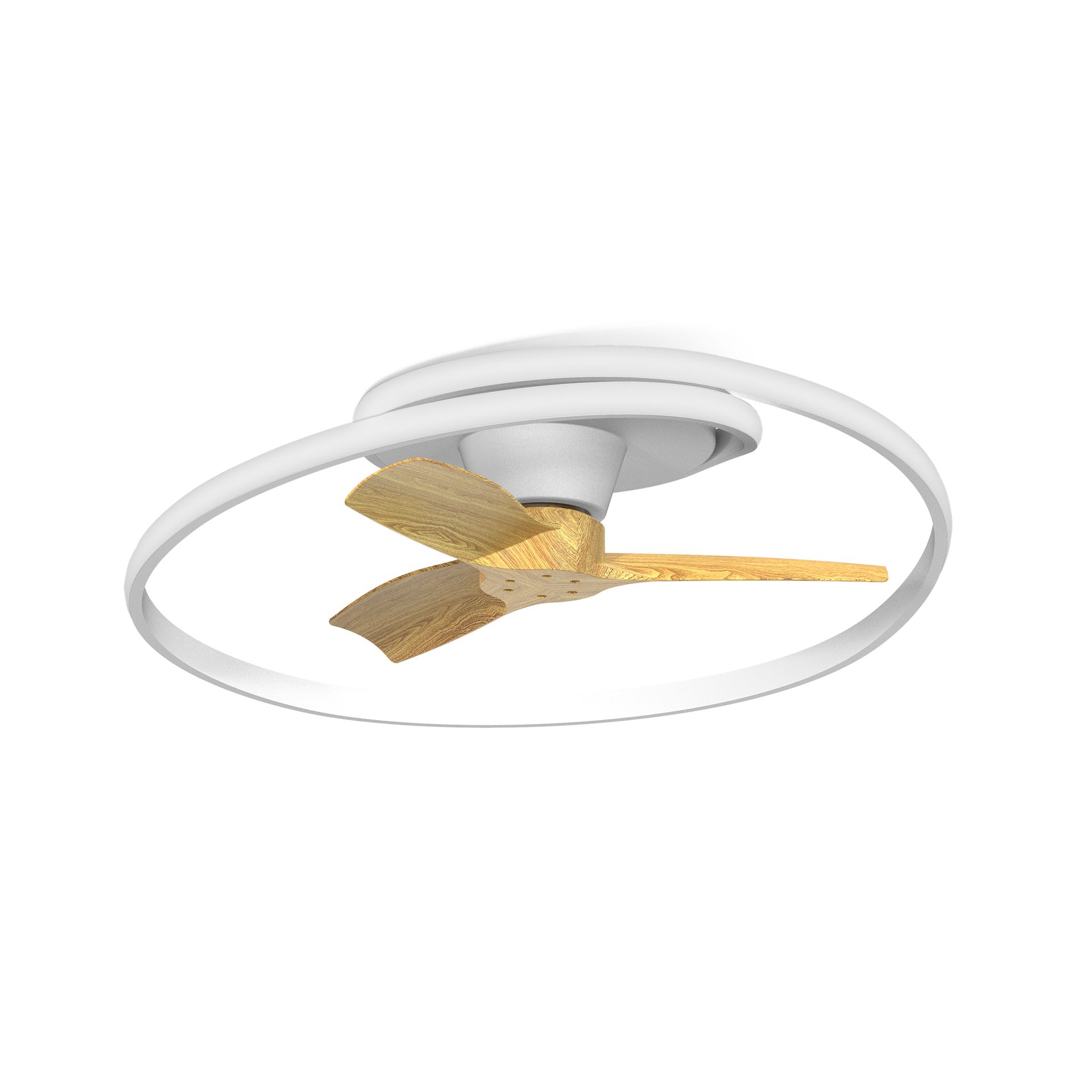

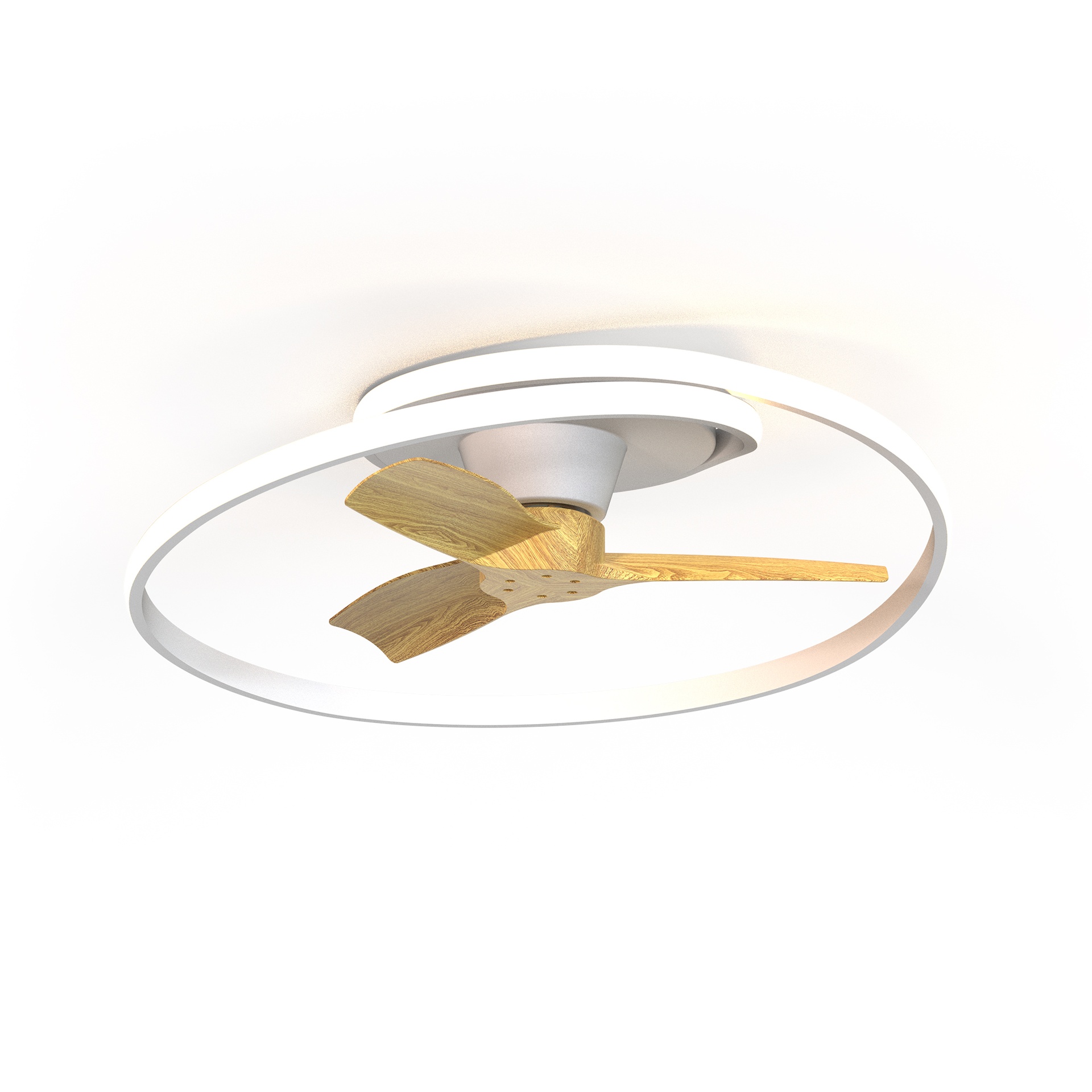

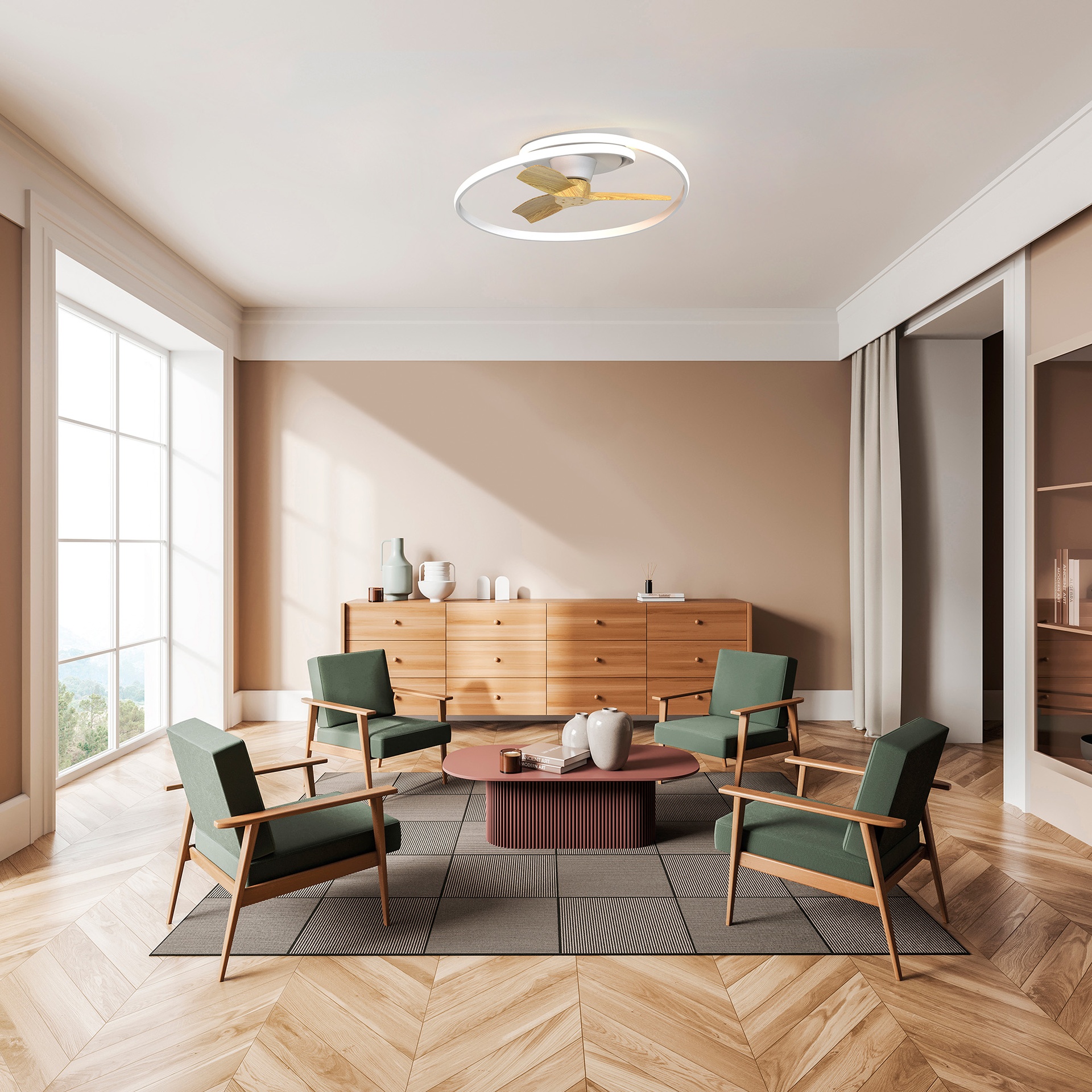

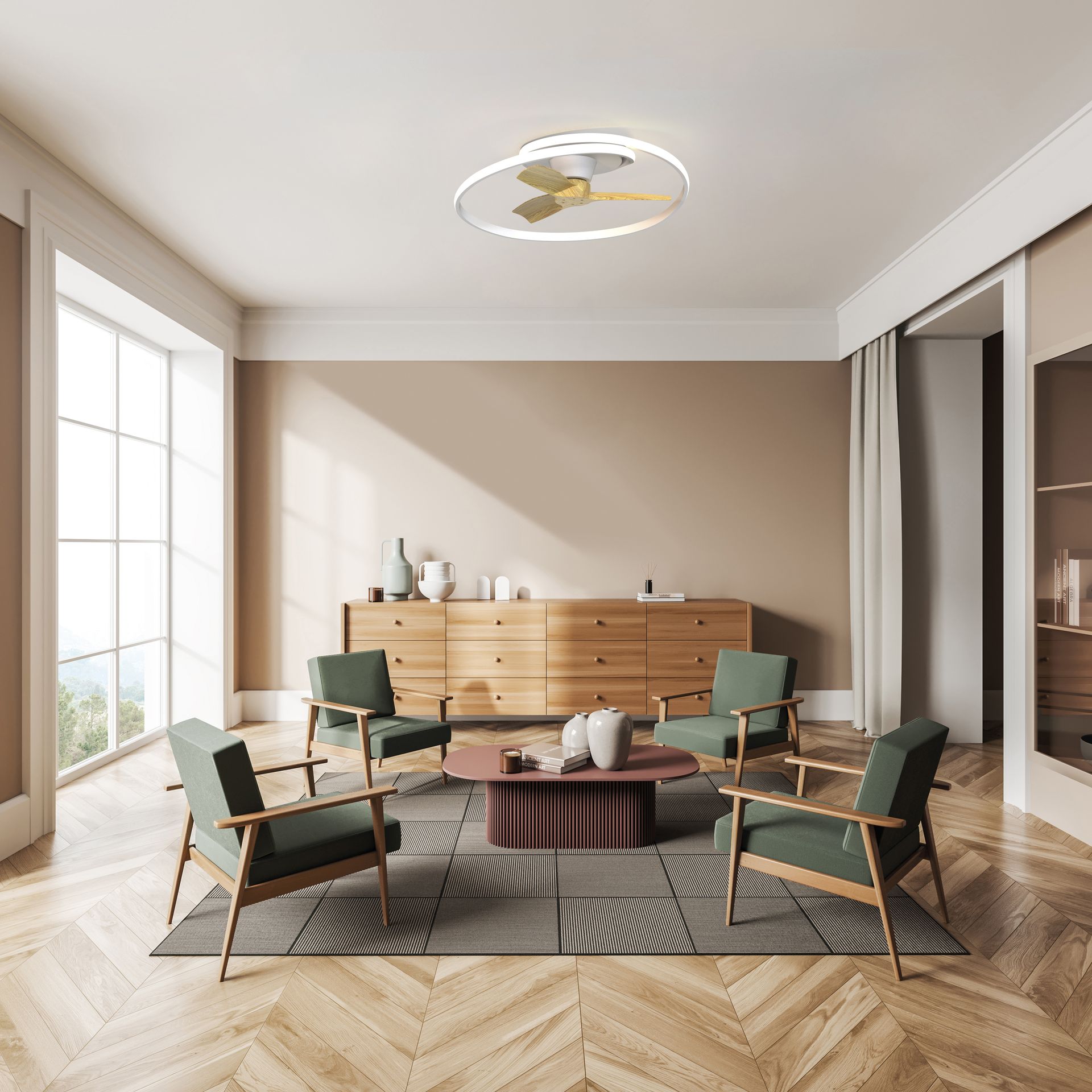

OCEAN * CEILING / FAN - WOOD
Reference 8235
The OCEAN collection, designed by José Ignacio Ballester, is a unique offering in the ventilation sector, distinguished by its personality and distinctive character. It consists of a ceiling fan, offering adaptable solutions for different spaces. The luminaires are made of acrylic (white) and available in white/wood or black/wood finishes, providing strength and style in every application. They incorporate LED technology with 2700K-5000K color temperatures, ensuring comfort and energy efficiency. Thanks to their IP20 protection, they are ideal for interiors, guaranteeing durability and reliability. OCEAN is synonymous with thoughtful design and lighting efficiency for all types of spaces.

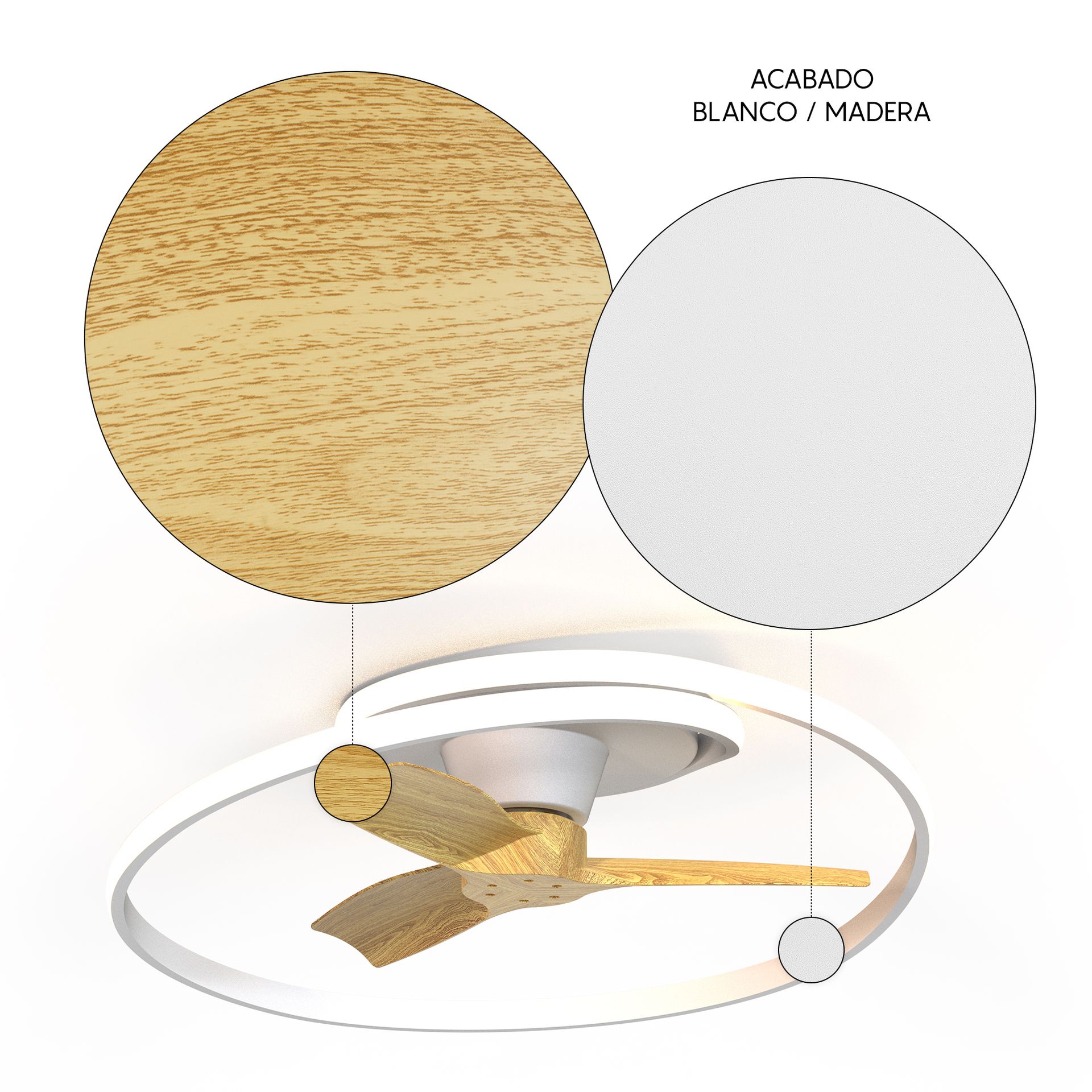

Finish: White / Wood

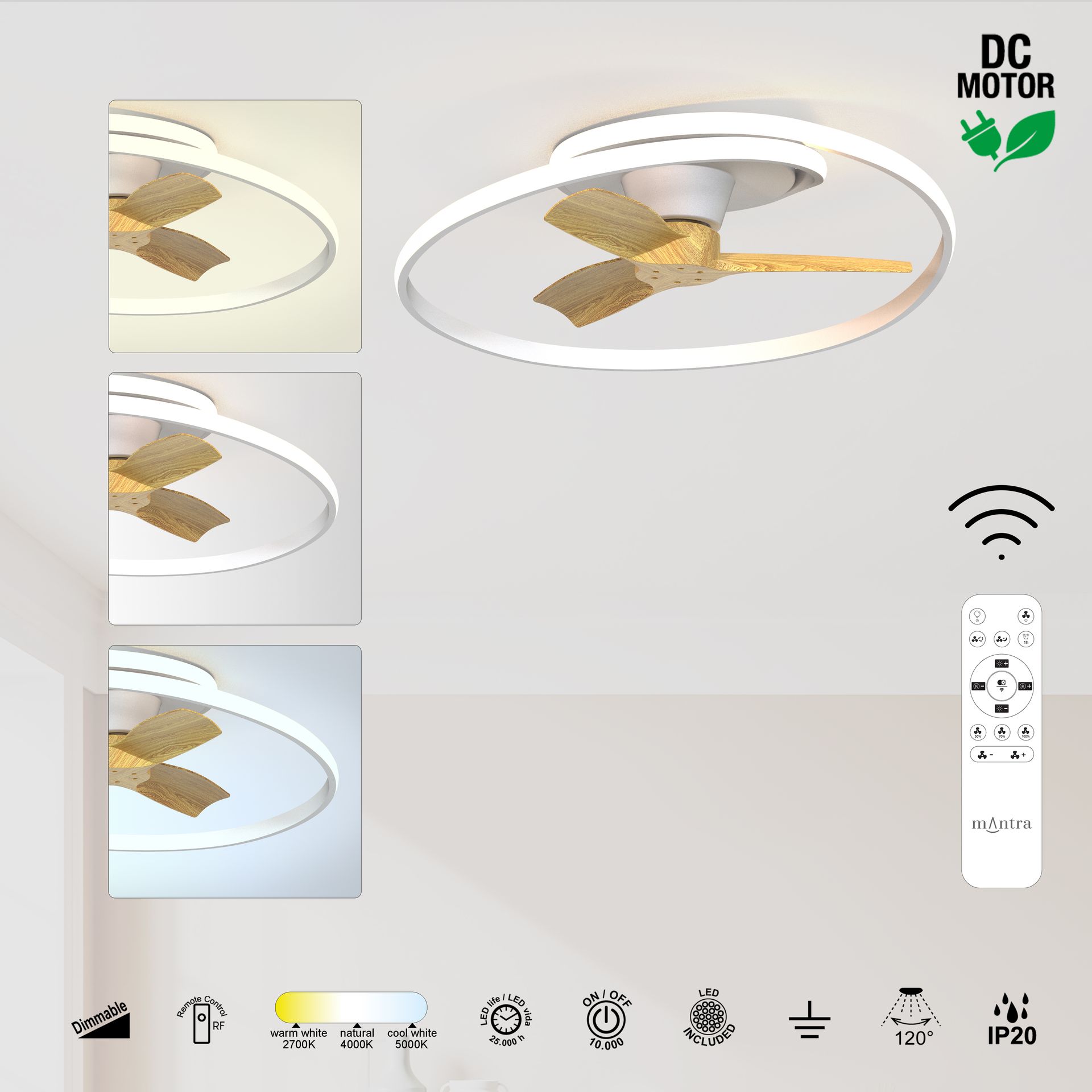

Features
General
- Finish
- White / Wood
- Material
- Steel / ABS

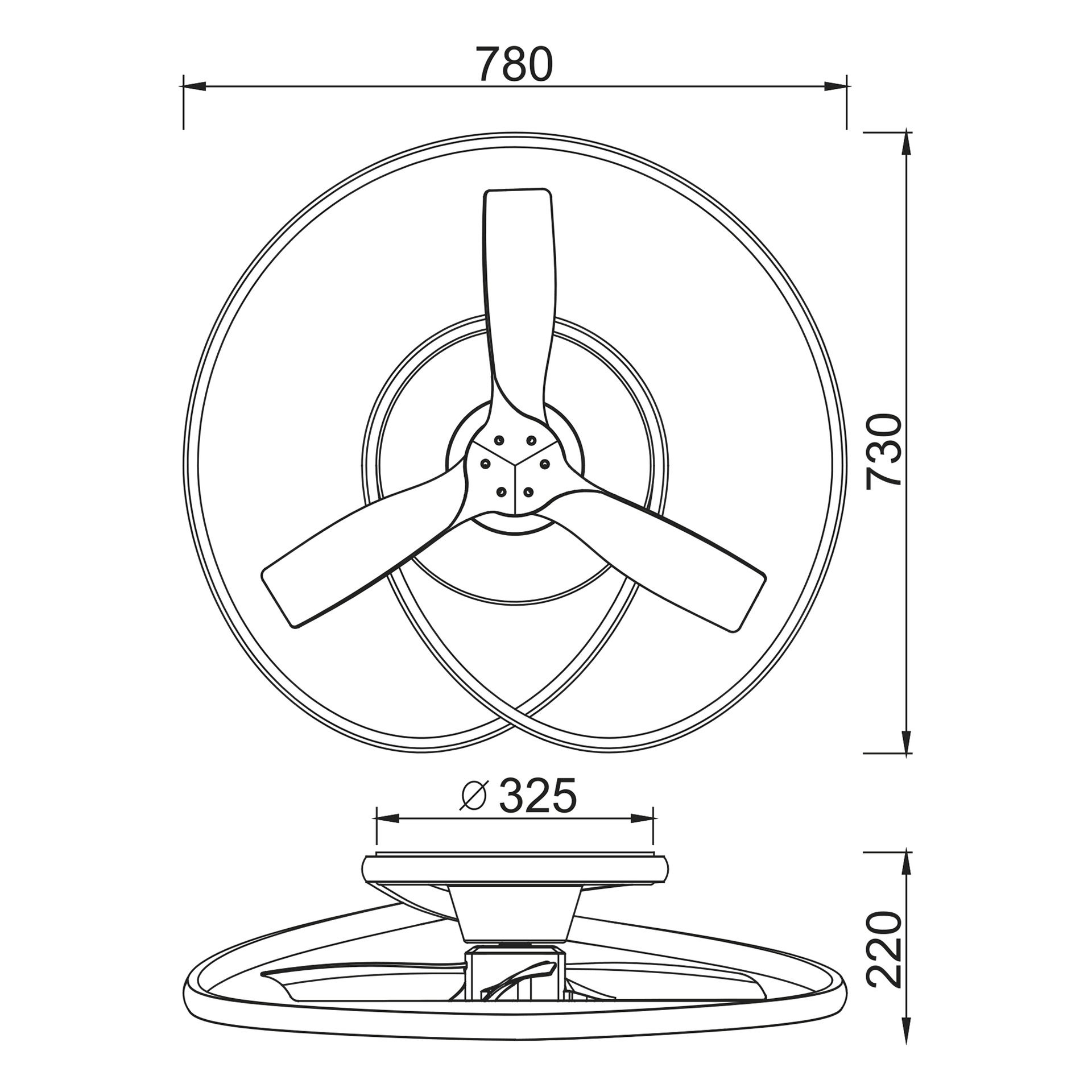

Dimensions
- Min.–max. height (H)
- 22 cm
- Net weight
- 4,85 kg
Features
- Dimmable
- Yes
- Height adjustable
- No
- Protection class
- I
- Electrical input
- 220-240V~ 50/60Hz
- Ingress protection rating
- IP20
- Remote control code
- R00137(433MHz)
- Remote control frequency
- 433MHz
- Dimmer
- Radio-frequency remote control
LED
- Luminous flux (lm)
- 4200 lm
- Luminous flux 360
- 6600 lm
- CCT (colour temperature)
- 2700K-5000K
- Power (W)
- 60W
- LED lifetime (hours)
- 25000 hours
- Replaceable
- Yes
- ON/OFF cycles
- 10000
- CRI
- 80
- Beam angle
- 360
Ventilation
- Motor
- 30W
- Noise level min./max. (dB)
- 33/49dB
- Light power (fan)
- 60W
- Speeds
- 3
- Recommended room size
- 13-20m²
- Maximum RPM
- 380
- Airflow
- 104m³/min
- Light included?
- Yes
- Blade material
- Polycarbonate
- Blade colour
- Wood
- Number of blades
- 3
- Reversible blades
- Yes
- Sloped ceiling
- Yes
- Maximum ceiling slope
- 90°
- Additional downrod?
- No
- Summer / winter mode
- Yes
- Motor type
- DC
Other information
- Designer
- José Ignacio Ballester
