Axis

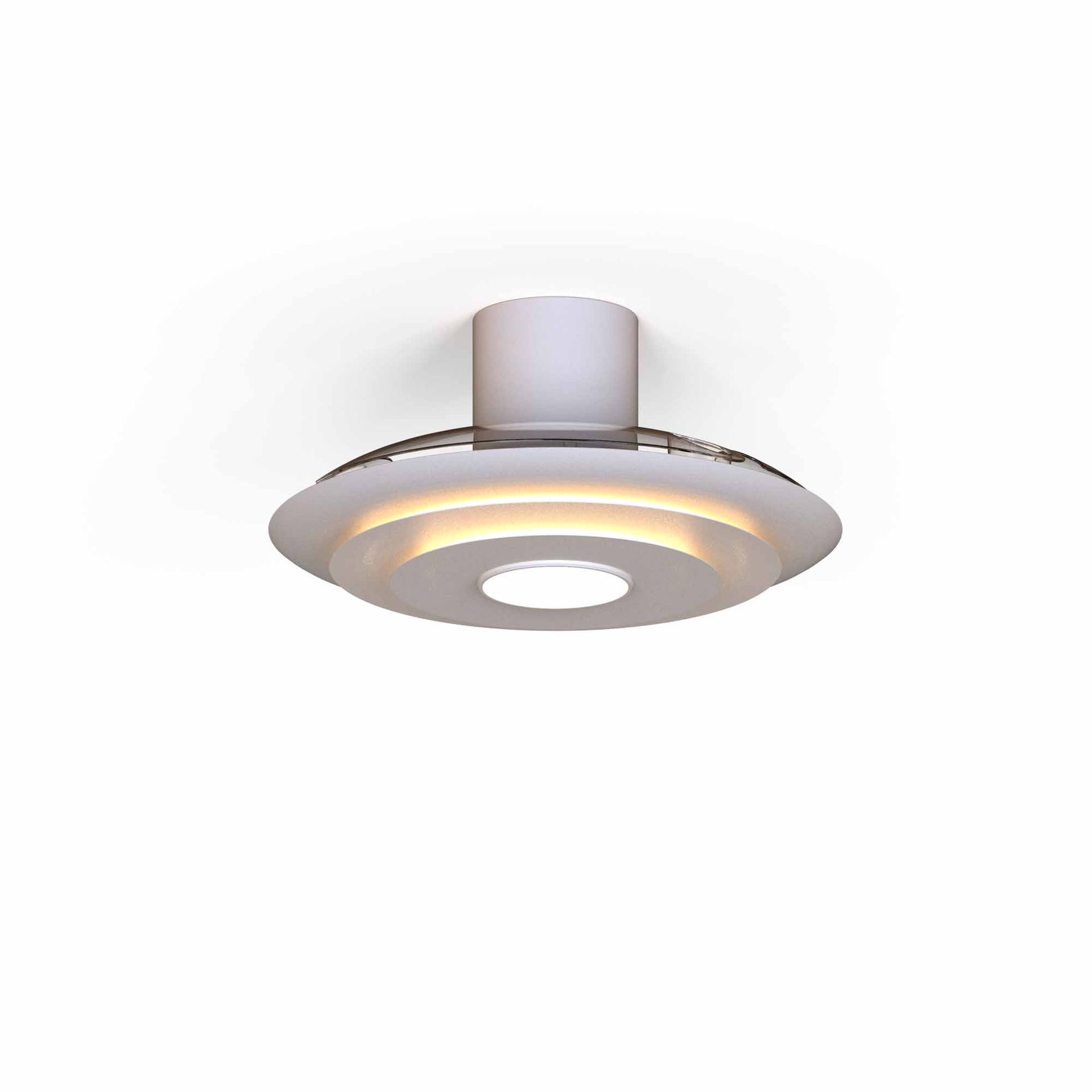

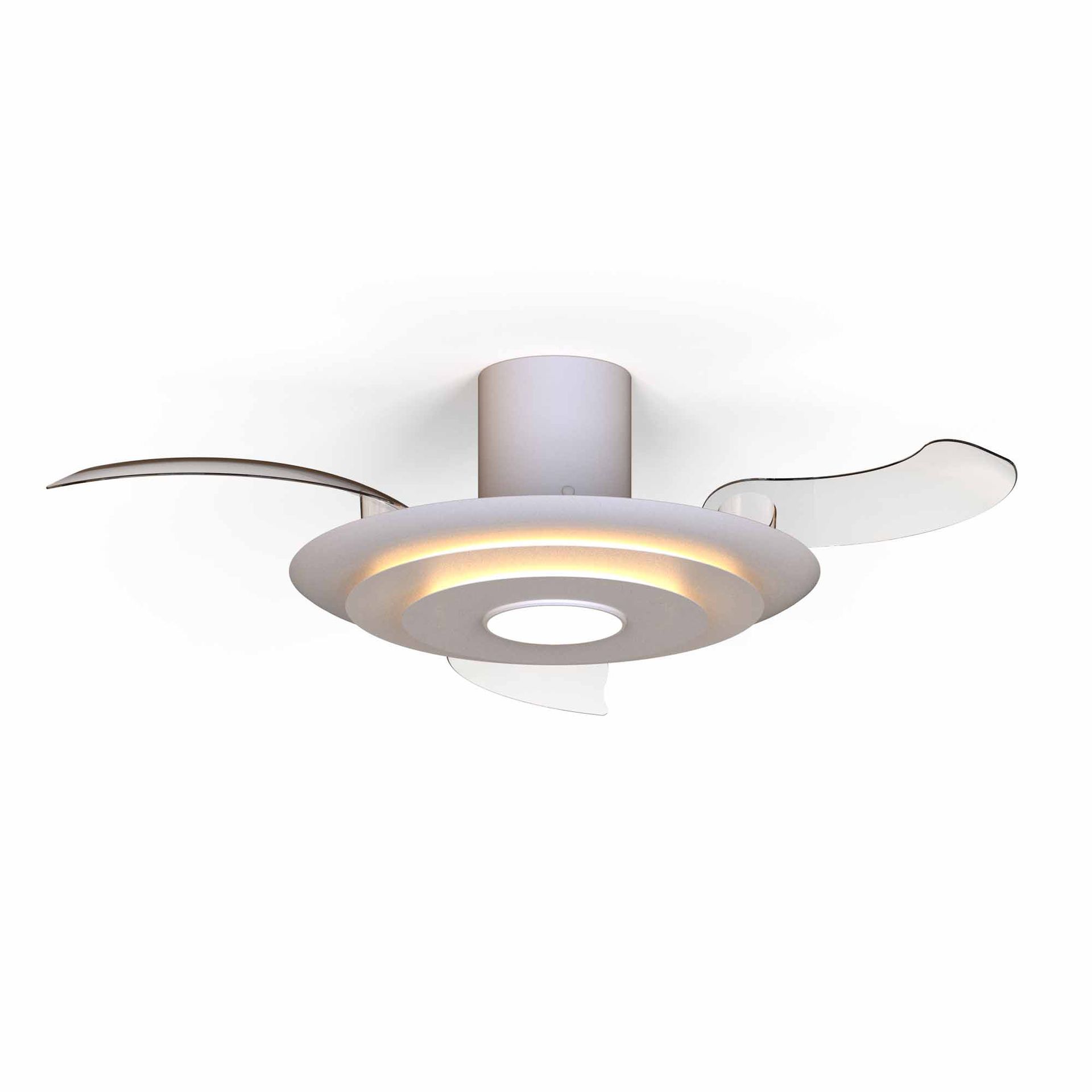

AXIS * FAN WHITE

Reference 30039

VENTILADOR AXIS BL D106 3000LM CCT DIM IP20

Finish: White

Features

General
Finish
White
Material
Iron / Acrylic / ABS

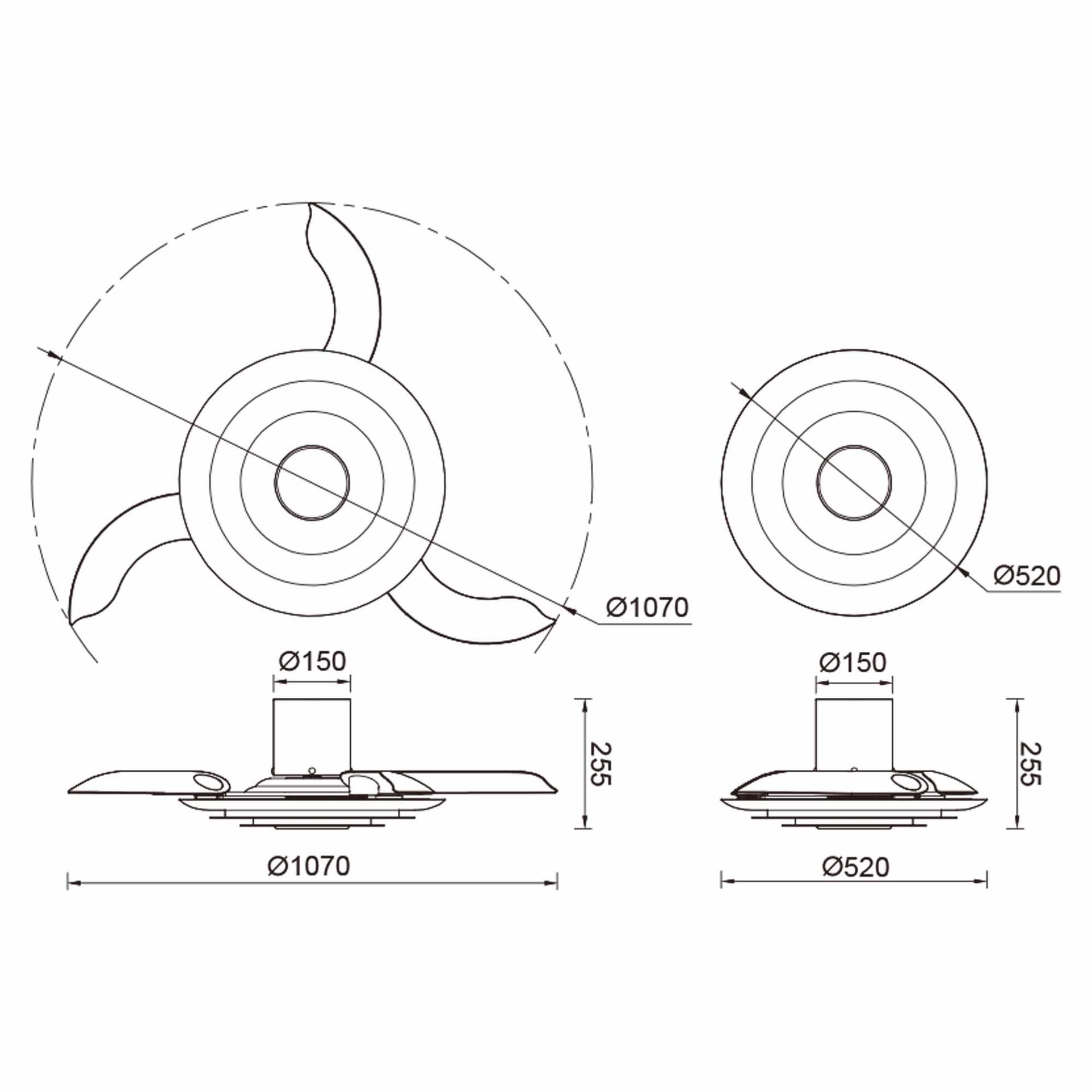

Dimensions
Min.–max. height (H)
25,5
Diameter
107
Net weight
5,8 kg
Features
Dimmable
Yes
Height adjustable
No
Protection class
I
Electrical input
100-240V~50/60Hz
Warranty
8
Ingress protection rating
IP20
Remote control code
R00465
Remote control frequency
433MHz
Dimmer
Radio-frequency remote control
LED
Luminous flux (lm)
3300
Luminous flux 360
5200 lm
CCT (colour temperature)
3000K-5000K
Power (W)
30
LED lifetime (hours)
25000
Replaceable
Yes
ON/OFF cycles
10000
CRI
80
Beam angle
120
Ventilation
Motor
30W
Noise level min./max. (dB)
32/46dB
Light power (fan)
30W
Speeds
6
Recommended room size
13-20m²
Maximum RPM
250
Minimum RPM
175
Maximum airflow (m³/min)
115m³/min
Maximum airflow (m³/h)
6900m³/h
Minimum airflow (m³/min)
40m³/min
Minimum airflow (m³/h)
2400m³/h
Light included?
Yes
Blade material
Polycarbonate
Blade colour
Transparent
Number of blades
3
Reversible blades
No
Sloped ceiling
Yes
Maximum ceiling slope
90°
Additional downrod?
No
Summer / winter mode
Yes
Motor type
DC
